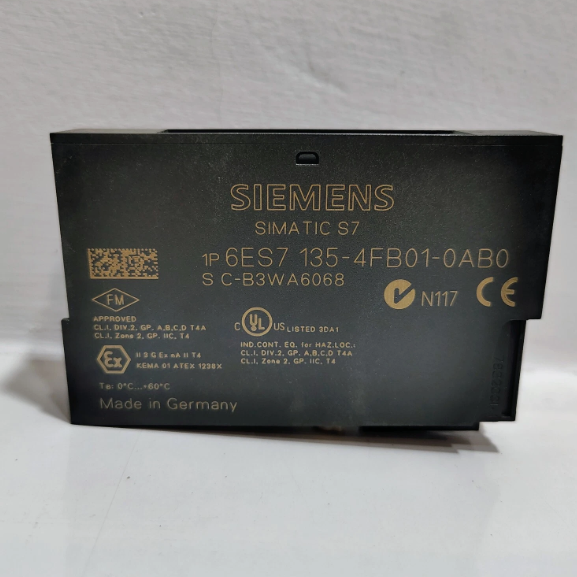

6ES7135-4FB01-0AB0 SIEMENS PLC Programmable Logic Controller 100-240V 50/60Hz
6ES7135-4FB01-0AB0 Description
The 6ES7135-4FB01-0AB0 is a 2-channel analog voltage output module from Siemens’ SIMATIC ET 200S distributed I/O system. Designed for high-precision signal generation in industrial automation, it delivers stable, low-noise voltage signals to control actuators, valves, and field devices. Operating within the SIMATIC DP (Profibus DP) architecture, it features fast cycle times, electrical isolation, and integrated diagnostics, ensuring reliable performance in harsh manufacturing environments.
6ES7135-4FB01-0AB0 Key Features
- Dual Voltage Output Channels: Supports standard industrial ranges: ±10 V DC and 1–5 V DC.
- High Resolution: 13 bits + sign for ±10 V; 12 bits for 1–5 V, enabling precise control.
- Ultra-Fast Response: Typical cycle time < 1 ms; settling time of 0.1 ms (resistive load) / 0.5 ms (capacitive/inductive load).
- Comprehensive Isolation: 500 V DC isolation between channels, backplane bus, and load voltage to prevent interference.
- Robust Protection: Built-in short-circuit protection (max. 25 mA) and reverse polarity protection.
- Space-Saving Design: Only 15 mm wide for high channel density in compact control cabinets.
- Integrated Diagnostics: SF (Group Fault) LED for quick fault identification and troubleshooting.
- Seamless Integration: Fully compatible with SIMATIC S7 controllers and ET 200S stations.
6ES7135-4FB01-0AB0 Materials & Applications
Materials
- Housing: High-strength thermoplastic with DIN rail mounting clips.
- Internal Components: Industrial-grade PCBs with conformal coating for durability.
- Contacts: Gold-plated terminals for reliable signal transmission and corrosion resistance.
- Terminals: Screw-type connections for secure field wiring.
Typical Applications
- Process Control: Closed-loop control of flow, pressure, level, and temperature.
- Valve Automation: Control of proportional, servo, and control valves.
- Factory Automation: Packaging, material handling, and assembly lines.
- Test & Measurement: Precision signal generation for automated test benches.
- Building Automation: HVAC and environmental control systems.
6ES7135-4FB01-0AB0 Important Parameters
| Parameter |
Specification |
| Part Number |
6ES7135-4FB01-0AB0 |
| Product Family |
SIMATIC ET 200S / SIMATIC DP |
| Number of Analog Outputs |
2 channels (voltage only) |
| Output Signal Ranges |
±10 V DC; 1–5 V DC |
| Resolution |
±10 V: 13 bits + sign; 1–5 V: 12 bits |
| Cycle Time (All Channels) |
Max. 1.5 ms; Typical < 1 ms |
| Settling Time |
Resistive load: 0.1 ms; Capacitive/inductive load: 0.5 ms |
| Short-Circuit Protection |
Yes; Max. 25 mA |
| Load Impedance |
Min. 1 kΩ (voltage output) |
| Max. Capacitive Load |
1 µF |
| Isolation Voltage |
500 V DC (channels / bus / load) |
| Supply Voltage (L+) |
24 V DC (from power module) |
| Current Consumption (No Load) |
Max. 130 mA (from L+); Max. 10 mA (from backplane bus) |
| Power Loss |
Max. 2 W |
| Dimensions (W × H × D) |
15 mm × 81 mm × 52 mm |
| Weight |
Approx. 40 g |
| Protection Rating |
IP20 |
| Operating Temperature |
-25 °C to +60 °C |
| Storage Temperature |
-40 °C to +70 °C |
| Humidity |
10–95% RH (non-condensing) |
| Diagnostic Indicator |
SF (red) LED for group fault |
| Predecessor Model |
6ES7135-4FB00-0AB0 |
