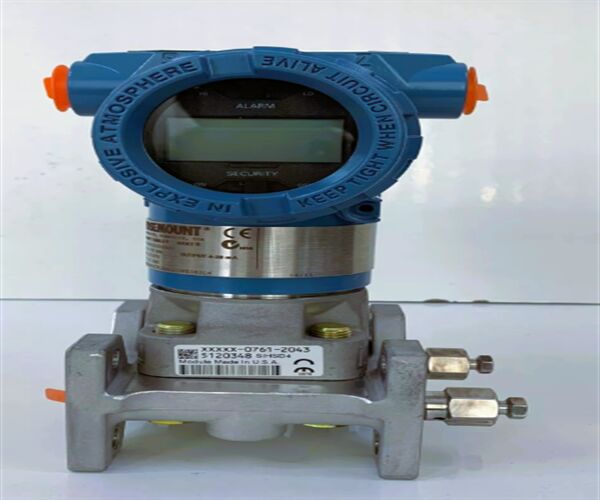

Emerson Rosemount 3051CD3A02A1AK5S5 Smart Differential Pressure Transmitter
Emerson Rosemount 3051CD3A02A1AK5S5 Smart Differential Pressure Transmitter
  • Emerson Rosemount 3051CD3A02A1AK5S5 Smart Differential Pressure Transmitter
  • Emerson Rosemount 3051CD3A02A1AK5S5 Smart Differential Pressure Transmitter
  • Emerson Rosemount 3051CD3A02A1AK5S5 Smart Differential Pressure Transmitter

Emerson Rosemount 3051CD3A02A1AK5S5 Smart Differential Pressure Transmitter

Productdetails:
Merknaam: Rosemount
Certificering: CE
Modelnummer: 3051CD3A02A1AK5S5
Detailinformatie
Merknaam:
Rosemount
Certificering:
CE
Modelnummer:
3051CD3A02A1AK5S5
Markeren:

High Light

Markeren:

Emerson Rosemount 3051 pressure transmitter

,

smart differential pressure transmitter

,

industrial pressure temperature transmitter

Handelsinformatie
Min. bestelaantal:
1
Prijs:
Onderhandelbaar
Verpakking Details:
Nieuw in originele doos
Levertijd:
3-5 werkdagen
Betalingscondities:
T/T
Levering vermogen:
1000
Productomschrijving
Emerson Rosemount 3051CD3A02A1AK5S5 Smart Differential Pressure Transmitter




  1. Model Components:
    • Model: 3051C coplanar pressure transmitter, with ‘D’ representing differential pressure measurement type.
    • Pressure Range: The Rosemount 3051CD differential pressure transmitter offers various pressure ranges, such as 0 to 30 psia (0 to 2.06 bar).
  2. Transmitter Output:
    • 4-20 mA with digital signal communication based on the HART protocol.
    • Options for FOUNDATION Fieldbus protocol or PROFIBUS PA protocol are also available.
  3. Process Connection Types:
    • The specific process connection types are not explicitly listed in the search results, but typically, Rosemount 3051CD transmitters provide a variety of process connection options to accommodate different installation requirements.
  4. Display and Interface Options:
    • M4 digital display with LOI, suitable for 4-20 mA HART and PROFIBUS PA types.
    • M5 digital display, a two-line five-digit LCD display for low-power output.
    • M6 graphic LCD display, suitable for 4-20 mA HART.
  5. Configuration Buttons:
    • Rosemount 3051 transmitters are shipped without buttons unless options D1 (Quick Service Button), D4 (Analog Zero and Span), DZ (Digital Zero), or M4(LOI) are specified as local configuration buttons.
  6. Transient Protection:
    • Tested according to IEEE C62.41.2-2002 Class B locations, with 6 kV peak (0.5 μs–100 kHz) and 3 kA peak (8 x 20 μs).
  7. Overpressure Limit and Static Pressure Limit:
    • For 3051CD/CG, ranges 2-5 are 31MPa; range 1 is 13.8MPa; 3051T type up to 103.4MPa.
    • Only for 3051CD type, 3.5kPa-a to 31MPa-g; for ranges 2-5, 31MPa is optional. See PDS for details.
  8. Power Supply and Dimensions:
    • Power Supply: Operates on 10.5-55V DC unloaded.
    • Dimensions: Approximately 198 x 126 x 104mm.
  9. Certifications and Protection Ratings:
    • Hazardous location certifications include ATEX, CSA, FM, IECEx.
    • Ingress Protection Ratings: NEMA 4X, IP66, IP68.
