HOG10 DN 1024 I SR 20H7 Baumer 20mm Shaft, with IP66 Rating for Moisture for Extreme Environments

Buitengewone levering een groot product, perfecte mededeling ook!! A++++

—— Carlos

Grote overeenkomst. Snel het verschepen en de goede dienst. Geadviseerd!!!!!!!!!

—— gita

Ik ben online Chatten Nu

HOG10 DN 1024 I SR 20H7 Baumer 20mm Shaft, with IP66 Rating for Moisture for Extreme Environments

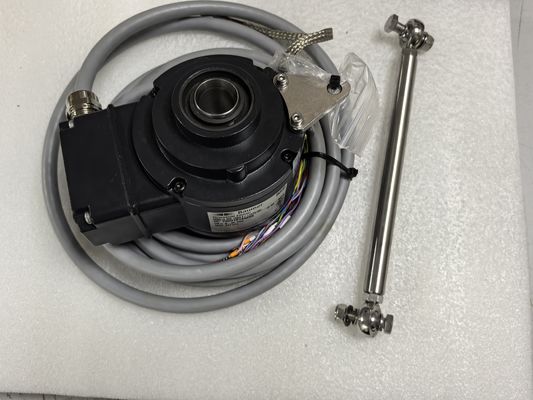

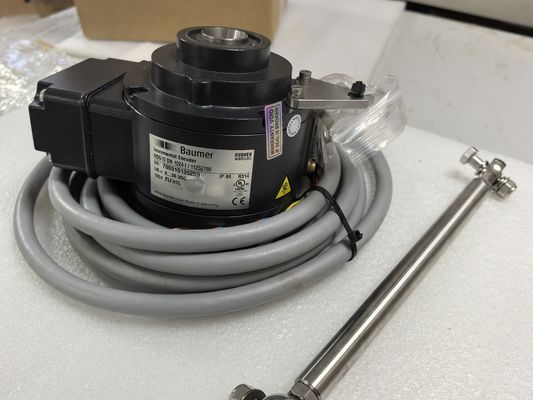

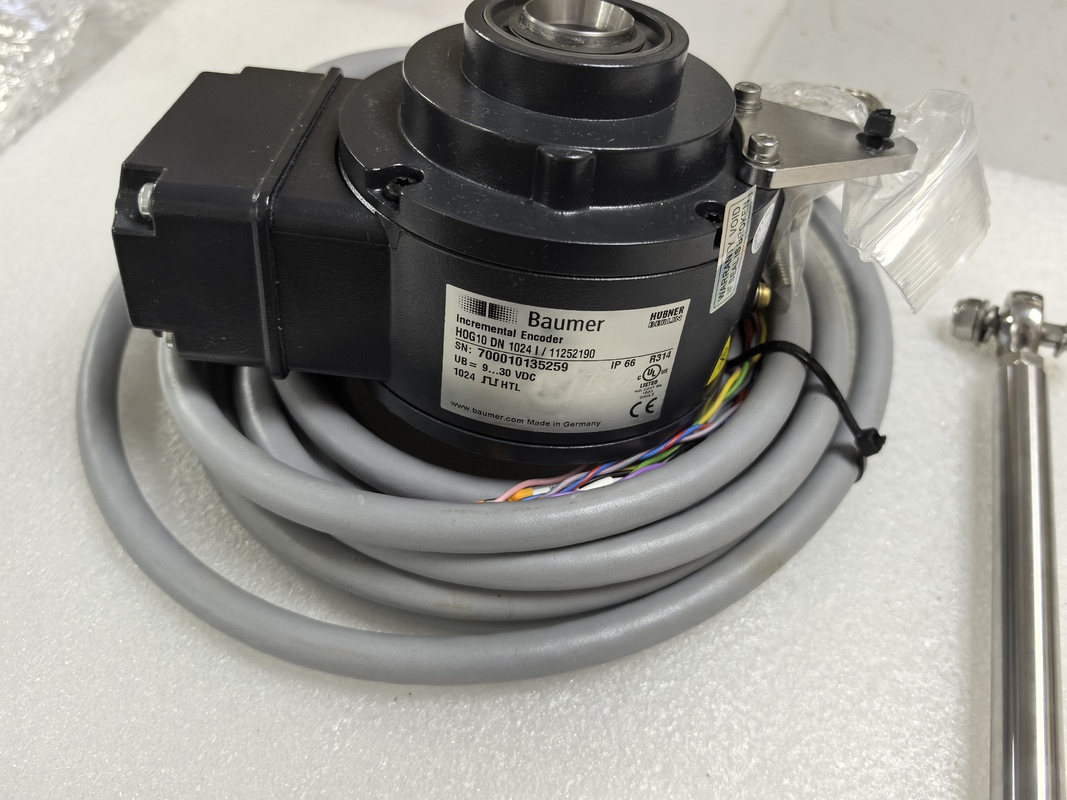

Grote Afbeelding :  HOG10 DN 1024 I SR 20H7 Baumer 20mm Shaft, with IP66 Rating for Moisture for Extreme Environments

Productdetails:

Plaats van herkomst: Duitsland
Merknaam: Baumer
Certificering: CE
Modelnummer: HOG10 DN 1024 I SR 20H7

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal: 1
Prijs: Onderhandelbaar
Verpakking Details: nieuwe originele verpakking
Levertijd: 5-8 dagen
Betalingscondities: T/T, PayPal
Levering vermogen: 100
Gedetailleerde productomschrijving
Model: HOG10 DN 1024 I SR Merk: Mitsubishi Servo Motor
Pulse per cyclus (PPR): 1024 Astype: Blind gat holle as (20h7 mm)
Werktemperatuur: -40 ° C tot+100 ° C

HOG10 DN 1024 I SR 20H7 Baumer 20mm Shaft, with IP66 Rating for Moisture for Extreme Environments.



HOG10 DN 1024 I SR 20H7 Parameter category and Specification:

  1. Basic model: HOG10 DN 1024 I SR
  2. Pulse Per Cycle (PPR): 1024
  3. Induction principle: photoelectric type
  4. Output signals: incremental signals (K1, K2, K0) and inverted signals
  5. Output circuit: HTL-P (power line driver)
  6. Power supply voltage: 9... 30 VDC
  7. Shaft type: blind hole hollow shaft (20H7mm)
  8. Protection level (IP): IP 66 (dustproof, anti strong water spray)
  9. Working temperature: -40 ° C to+100 ° C
  10. Mechanical speed: ≤ 6000 rpm
  11. Allowable axial load: axial ≤ 450 N, radial ≤ 600 N
  12. Shaft insulation voltage: up to 2.8 kV

HOG10 DN 1024 I SR 20H7 Main features and advantages:



  1. Durable and sturdy: The shell is made of die cast aluminum material, and the shaft is made of stainless steel, which can withstand high-strength axial and radial loads, and has excellent resistance to vibration (up to 20 g) and impact (up to 300 g), making it very suitable for heavy machinery applications.
  2. Environmental adaptability: High protection level (IP66) ensures stable operation in dusty and humid environments. The wide temperature range design enables it to adapt to extreme temperature changes from cold zones to high-temperature workshops.
  3. High performance electrical characteristics: The HTL-P output circuit supports long-distance signal transmission (up to 350 meters) and has high anti-interference performance. The shaft insulation design can effectively prevent damage to the encoder caused by shaft current, which is crucial for large-scale motor drive applications.
  4. Flexible installation: The product is equipped with a large junction box for easy wiring




Similer item we can supply:



HOG10 DN 1024 I LR 16H7
HOG10 DN 1024 R LR 17K + FSL4
