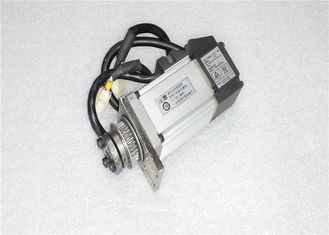

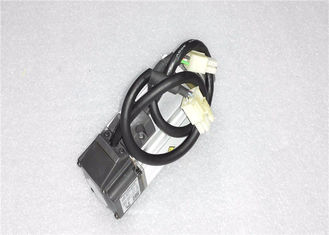

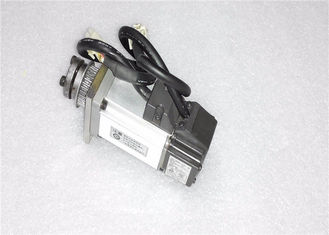

Industriële servomotor Panasonic AC servomotor 3P AC92V 1.0A MUMA012P1S
Specificaties:
Deelnummer MUMA012P1S
Product servomotor
Productnaam MINAS E-serie Servomotor
Features Compact servo alleen voor positiecontrole.
Deelnummer MUMA012P1S
Type Ultra lage traagheid
Behuizing IP65
Over de behuizing Behalve het draaiende deel van de uitgangsas en het eind van de kopdraad.
Omgevingsvoorwaarden Voor meer informatie, zie de gebruiksaanwijzing.
Spanningsspecificaties 200 V
Nominale kracht 100 W
Nominale stroom (A (rms)) 1.0
Het remmen zonder
Gewicht (kg) 050
Olieverzegeling zonder
Schacht Sleutelweg, middelste tik
Nominaal koppel (N ⋅ m) 0.32
Momenteel max. piekkoppel (N ⋅ m) 0.95
Regeneratieve remfrequentie (tijden/min) zonder optie: Geen limiet
Met optie: Geen limiet
Optie (externe regeneratieve weerstand) Deel nr. : DV0P2891
De regeneratieve remfrequentie is de frequentie waarmee de motor stopt vanaf het nominale toerental bij vertraging zonder belasting.
⋅ Als de belasting is aangesloten, wordt de frequentie gedefinieerd als 1/(m + 1 ), waarbij m = (lasmoment van traagheid) / (rotormoment van traagheid).
⋅ Wanneer het toerental van de motor het nominale toerental overschrijdt, is de regeneratieve remfrequentie omgekeerd evenredig aan het vierkant van (looptoerental / nominale toerental).
⋅ De spanning van de voeding is AC115 V (bij 100 V van de hoofdspanning).de frequentie is omgekeerd evenredig aan het kwadraat van (Geleide voedingsspanning /115) ten opzichte van de waarde in de tabel.
⋅ Wanneer de regeneratie continu plaatsvindt, zoals bij frequente veranderingen van de snelheid of verticale voeding, raadpleeg ons of een dealer.
Als het effectieve koppel binnen het nominale koppel ligt, is er geen grens voor de regeneratieve rem.
Nominale rotatiesnelheid (r/min) 3000
Nominale maximale rotatiesnelheid (r/min) 5000
Moment van traagheid van de rotor (x10-4 kg ⋅ m2) 0.032
Aanbevolen traagheidsmomentverhouding van de belasting en de rotor 30 maal of minder
Over de aanbevolen verhouding van het traagheidsmoment van de belasting en de rotor Noot) 3. Raadpleeg ons of een dealer indien het traagheidsmoment van de belasting de opgegeven waarde overschrijdt.
Roterende encoder: specificaties 2500 P/r Incrementele
Roterende encoder: Resolutie 10000
