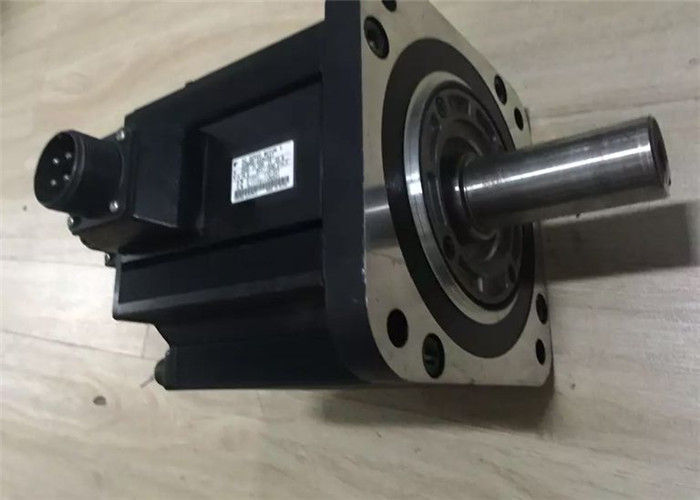

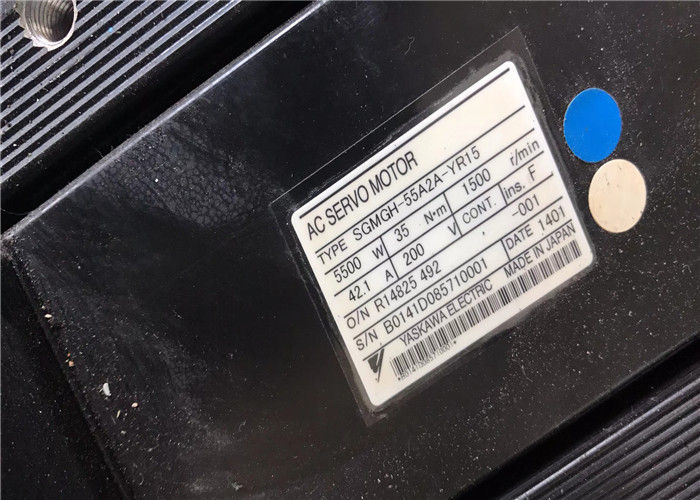

1.5.4 Motorkabel voor servomotoren SGMAH / SGMPH 200V-serie Deel nr.: DP9325252-##G SGMAH, SGMPH-01Axx - SGMPH-08Axx DP9325254-##G SGMPH-15Axx (##: kabellengte, 03 = 3m; 05 = 5m; 10 = 10m; 15 = 15m;20 = 20 m)
Terminalverbinding
No. Beschrijving Kleur
1 Fase U Zwart (wit 1)
2 Fase V Zwart (wit 2)
3 Fase W Zwart (wit 3)
4 gratis -
5 gratis -
6 Grond van het frame Groen/Geel
1.5.5 Motorkabel voor servomotoren met rem SGMAH / SGMPH 200-serie Deel nr.: DP9325253-##G SGMAH, SGMPH-01AxxxC - SGMPH-08AxxxC DP9325255-##G SGMPH-15AxxxC (##: kabellengte, 03 = 3m; 05 = 5m;10 = 10m; 15 = 15m; 20 = 20m)
Terminalverbinding
No. Beschrijving Kleur
1 Fase U Zwart (wit 1)
2 Fase V Zwart (wit 2)
3 Fase W Zwart (wit 3)
4 rem zwart (wit 4)
5 rem Zwart (wit 5)
6 Grond van het frame Groen/Geel
1.6 Specificatie van de encoderconnector 1.6.1 Encoderconnector (encoderzijde) Deel No: S RU C 17G MR WN 087
Specificaties:
Polen: : 17
Temperatuurbereik: -25°C tot 125°C
Kabelklem: Æ5,5 mm
Beschermingstype: IP67 aangesloten
IP00 niet aangesloten
Elektrische prestaties:
Stroom: 9A
Nominale spanning: 20 V
Testspanning: 800 V
Contactweerstand: Paringscycli: > 500
Materiaal:
Lichaam: PA 6.6, glasvezelversterkt
Isolator: PBT, glasvezelversterkt
Contacten: Messing / verguld
Verzegelingen: FPM
Contactpersonen:
Type: Pin Æ1 Pin Æ1
Deel nr. 021.311.1020 021.402.1020
Beëindiging: Crimp Crimp
Krimpbereik: 0,24 tot 1,0 mm2 0,05 tot 0,34 mm2
Vergrendeling van de sluiting: > 30N > 30N
Gereedschap:
Vergrendelingsgereedschapspositionairpositionair
B 150 B 055/A
B 161 B 200 ------------
Elektrische gegevens (bij 20°C) (0,25 mm2) (0,50 mm2)
Leiderweerstand: 82,0 W/km: 41,0 W/km
Isolatieweerstand: > 200 MWxkm
Schermdemping tot 30 MHz: 45 dB (bij benadering)
maximaal 1 GHz: 30 dB (bij benadering)
(Testmethode volgens IEC 96-1 Amend. 2 (1993) A.5.6 Lineaire injectiemethode)
Testspanning (C/C): 2,0 kVeff
(C/S): 1,0 kVeff
Werkspanning: 300V
Werkstroom (een enkele kabel) bij omgevingstemperatuur
0,35 mm2 0,25 mm2
20°C: £ 4,5 A; : £ 2,2 A
30°C: £ 3,8 A; : £ 1,9 A
40°C: £ 3,2 A; : £ 1,6 A
50°C: £ 2,5 A; : £ 1,2 A
60°C: £ 1,9 A; : £ 0,9 A
70°C: £ 1,2 A; : £ 0,6 A
Temperatuurbereik (vervoer en opslag): -70°C bis + 90°C
(Installatie en behandeling): -40°C bis + 90°C
(Bediening) : -20°C bis + 80°C
Buigradius (operationeel): 3 x kabel-
(meerdere malen): 3 7,5 x kabel-Æ
(verscheidene malen optimaal): 3 10 x kabel-Æ
Buigsterkte (r= 10 x kabel-Æ bij 20°C): 3 5.000.000 cycli
verminderde levensduur bij hogere bedrijfstemperaturen.
Olieweerstand: VDE 0282 deel 10
Hydrolyseresistentie: VDE 0282 deel 10
Vlambestandheid: volgens VDE 0472 deel 804 voorwaarde B
Goedkeuring: bewijsmateriaal van een VDE-deskundige (VDE-REG-Nr.6589)
Het jasoppervlak heeft een lage hechting, waardoor een kleverigheid door contact wordt voorkomen.
Alle materialen zijn halogeenvrij.
Geschikt voor gebruik in flexibele ketenkabelhouders.
Niet bestemd voor gebruik buiten of in de aarde
Bij gebruik als besturingskabel moet rekening worden gehouden met de desbetreffende installatie- en/of toepassingsnormen.
